# Angles

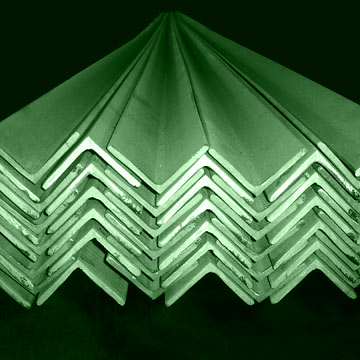

Penn Stainless Products supplies stainless even leg angles in 304/304L and 316/316L. Larger even leg stainless angles can be manufactured utilizing laser fusion technology. Laser fused technology also enables engineers and metal buyers to mix thickness or even material grades. Laser fused even leg angles can also be supplied in Duplex 2205 and lean Duplex 2201.

All even leg angles can be cut to size. Even leg stainless angles can be supplied with a polished finish. See below for information specific to angles.

**Product Variations**

- 20-22 Ft. R/L
- Specs: QQS-ASTM-ASME-AMS
- Grades: 304, 304L, 316, 316L
- Annealed and Pickled
- Estimated weight in pounds per foot.
- Sizes over 6″ will be laser fused.

**Choose Table:**

Dimensions | A | B | C | Est Wt* | Availability |
---|---|---|---|---|---|

1/2 x 1/2 x 1/8 | 0.5 | 0.5 | 0.125 | 0.4 | |

3/4 x 3/4 x 1/8 | 0.75 | 0.75 | 0.125 | 0.59 | |

1 x 1 x 1/8 | 1 | 1 | 0.125 | 0.8 | |

1-1/2 x 1-1/2 x 1/8 | 1.5 | 1.5 | 0.125 | 1.23 | |

1-1/2 x 1-1/2 x 3/16 | 1.5 | 1.5 | 0.1875 | 1.8 | |

1-1/2 x 1-1/2 x 1/4 | 1.5 | 1.5 | 0.25 | 2.34 | |

2 x 2 x 1/8 | 2 | 2 | 0.125 | 1.69 | |

2 x 2 x 3/16 | 2 | 2 | 0.1875 | 2.44 | |

2 x 2 x 1/4 | 2 | 2 | 0.25 | 3.19 | |

2 x 2 x 3/8 | 2 | 2 | 0.375 | 4.74 | |

2-1/2 x 2-1/2 x 3/16 | 2.5 | 2.5 | 0.1875 | 3.07 | |

2-1/2 x 2-1/2 x 1/4 | 2.5 | 2.5 | 0.25 | 4.1 | |

2-1/2 x 2-1/2 x 3/8 | 2.5 | 2.5 | 0.375 | 5.9 | |

3 x 3 x 3/16 | 3 | 3 | 0.1875 | 3.7 | |

3 x 3 x 1/4 | 3 | 3 | 0.25 | 4.9 | |

3 x 3 x 3/8 | 3 | 3 | 0.375 | 7.2 | |

3 x 3 x 1/2 | 3 | 3 | 0.5 | 9.55 | |

4 x 4 x 1/4 | 4 | 4 | 0.25 | 6.6 | |

4 x 4 x 3/8 | 4 | 4 | 0.375 | 9.8 | |

4 x 4 x 1/2 | 4 | 4 | 0.5 | 13.2 | |

5 x 5 x 1/4 | 5 | 5 | 0.25 | 9.1 | C |

5 x 5 x 5/16 | 5 | 5 | 0.3125 | 10.3 | C |

5 x 5 x 3/8 | 5 | 5 | 0.375 | 12.3 | C |

5 x 5 x 1/2 | 5 | 5 | 0.5 | 16.3 | C |

5 x 5 x 5/8 | 5 | 5 | 0.625 | 20.1 | C |

6 x 6 x 1/4 | 6 | 6 | 0.25 | 10.1 | C |

6 x 6 x 3/8 | 6 | 6 | 0.375 | 14.9 | |

6 x 6 x 1/2 | 6 | 6 | 0.5 | 19.7 | |

6 x 6 x 5/8 | 6 | 6 | 0.625 | 24.3 | C |

8 x 8 x 1/4 | 8 | 8 | 0.25 | 13.5 | C |

8 x 8 x 3/8 | 8 | 8 | 0.375 | 20.1 | C |

8 x 8 x 1/2 | 8 | 8 | 0.5 | 26.5 | C |

8 x 8 x 5/8 | 8 | 8 | 0.625 | 32.91 | C |

8 x 8 x 3/4 | 8 | 8 | 0.75 | 39.17 | C |

Dimensions | A | B | C | Est Wt* | Availability |
---|---|---|---|---|---|

1/2 x 1/2 x 1/8 | 0.5 | 0.5 | 0.125 | 0.4 | C |

3/4 x 3/4 x 1/8 | 0.75 | 0.75 | 0.125 | 0.59 | |

1 x 1 x 1/8 | 1 | 1 | 0.125 | 0.8 | |

1-1/2 x 1-1/2 x 1/8 | 1.5 | 1.5 | 0.125 | 1.23 | |

1-1/2 x 1-1/2 x 3/16 | 1.5 | 1.5 | 0.1875 | 1.8 | |

1-1/2 x 1-1/2 x 1/4 | 1.5 | 1.5 | 0.25 | 2.34 | |

2 x 2 x 1/8 | 2 | 2 | 0.125 | 1.69 | |

2 x 2 x 3/16 | 2 | 2 | 0.1875 | 2.44 | |

2 x 2 x 1/4 | 2 | 2 | 0.25 | 3.19 | |

2 x 2 x 3/8 | 2 | 2 | 0.375 | 4.74 | |

2-1/2 x 2-1/2 x 3/16 | 2.5 | 2.5 | 0.1875 | 3.07 | |

2-1/2 x 2-1/2 x 1/4 | 2.5 | 2.5 | 0.25 | 4.1 | |

2-1/2 x 2-1/2 x 3/8 | 2.5 | 2.5 | 0.375 | 5.9 | |

3 x 3 x 3/16 | 3 | 3 | 0.1875 | 3.7 | |

3 x 3 x 1/4 | 3 | 3 | 0.25 | 4.9 | |

3 x 3 x 3/8 | 3 | 3 | 0.375 | 7.2 | |

3 x 3 x 1/2 | 3 | 3 | 0.5 | 9.55 | |

4 x 4 x 1/4 | 4 | 4 | 0.25 | 6.6 | |

4 x 4 x 3/8 | 4 | 4 | 0.375 | 9.8 | |

4 x 4 x 1/2 | 4 | 4 | 0.5 | 13.2 | |

5 x 5 x 1/4 | 5 | 5 | 0.25 | 9.1 | C |

5 x 5 x 5/16 | 5 | 5 | 0.3125 | 10.3 | C |

5 x 5 x 3/8 | 5 | 5 | 0.375 | 12.3 | |

5 x 5 x 1/2 | 5 | 5 | 0.5 | 16.3 | |

5 x 5 x 5/8 | 5 | 5 | 0.625 | 20.1 | C |

6 x 6 x 1/4 | 6 | 6 | 0.25 | 10.1 | C |

6 x 6 x 3/8 | 6 | 6 | 0.375 | 14.9 | |

6 x 6 x 1/2 | 6 | 6 | 0.5 | 19.7 | |

6 x 6 x 5/8 | 6 | 6 | 0.625 | 24.3 | C |

8 x 8 x 1/4 | 8 | 8 | 0.25 | 13.5 | C |

8 x 8 x 3/8 | 8 | 8 | 0.375 | 20.1 | C |

8 x 8 x 1/2 | 8 | 8 | 0.5 | 26.5 | C |

8 x 8 x 5/8 | 8 | 8 | 0.625 | 32.91 | C |

8 x 8 x 3/4 | 8 | 8 | 0.75 | 39.17 | C |

Dimensions | A | B | C | Est Wt* | Availability |
---|---|---|---|---|---|

1/2 x 1/2 x 1/8 | 0.5 | 0.5 | 0.125 | 0.4 | C |

3/4 x 3/4 x 1/8 | 0.75 | 0.75 | 0.125 | 0.59 | C |

1 x 1 x 1/8 | 1 | 1 | 0.125 | 0.8 | C |

1-1/2 x 1-1/2 x 1/8 | 1.5 | 1.5 | 0.125 | 1.23 | C |

1-1/2 x 1-1/2 x 3/16 | 1.5 | 1.5 | 0.1875 | 1.8 | C |

1-1/2 x 1-1/2 x 1/4 | 1.5 | 1.5 | 0.25 | 2.34 | C |

2 x 2 x 1/8 | 2 | 2 | 0.125 | 1.69 | C |

2 x 2 x 3/16 | 2 | 2 | 0.1875 | 2.44 | C |

2 x 2 x 1/4 | 2 | 2 | 0.25 | 3.19 | C |

2 x 2 x 3/8 | 2 | 2 | 0.375 | 4.74 | C |

2-1/2 x 2-1/2 x 3/16 | 2.5 | 2.5 | 0.1875 | 3.07 | C |

2-1/2 x 2-1/2 x 1/4 | 2.5 | 2.5 | 0.25 | 4.1 | |

2-1/2 x 2-1/2 x 3/8 | 2.5 | 2.5 | 0.375 | 5.9 | C |

3 x 3 x 3/16 | 3 | 3 | 0.1875 | 3.7 | C |

3 x 3 x 1/4 | 3 | 3 | 0.25 | 4.9 | C |

3 x 3 x 3/8 | 3 | 3 | 0.375 | 7.2 | C |

3 x 3 x 1/2 | 3 | 3 | 0.5 | 9.55 | C |

4 x 4 x 1/4 | 4 | 4 | 0.25 | 6.6 | C |

4 x 4 x 3/8 | 4 | 4 | 0.375 | 9.8 | C |

4 x 4 x 1/2 | 4 | 4 | 0.5 | 13.2 | C |

5 x 5 x 1/4 | 5 | 5 | 0.25 | 9.1 | C |

5 x 5 x 5/16 | 5 | 5 | 0.3125 | 10.3 | C |

5 x 5 x 3/8 | 5 | 5 | 0.375 | 12.3 | C |

5 x 5 x 1/2 | 5 | 5 | 0.5 | 16.3 | C |

5 x 5 x 5/8 | 5 | 5 | 0.625 | 20.1 | C |

6 x 6 x 1/4 | 6 | 6 | 0.25 | 10.1 | C |

6 x 6 x 3/8 | 6 | 6 | 0.375 | 14.9 | C |

6 x 6 x 1/2 | 6 | 6 | 0.5 | 19.7 | C |

6 x 6 x 5/8 | 6 | 6 | 0.625 | 24.3 | C |

8 x 8 x 1/4 | 8 | 8 | 0.25 | 13.5 | C |

8 x 8 x 3/8 | 8 | 8 | 0.375 | 20.1 | C |

8 x 8 x 1/2 | 8 | 8 | 0.5 | 26.5 | C |

8 x 8 x 5/8 | 8 | 8 | 0.625 | 32.91 | C |

8 x 8 x 3/4 | 8 | 8 | 0.75 | 39.17 | C |

**Processing**

**Value-Added Services**

The following value added services can be provided by Penn Stainless Products in order to meet the exact specifications of your stainless steel structural requirements.

- Let Penn Stainless cut your next stainless angle requirement to your exact dimension. Need 75 pieces of stainless angle cut to 2’4″ long? No problem. We cut stainless steel angle to size!
- Need a special grade? We can form angles form plate in such grades as 304H, 309/S, 310/S, 317L, 317LMN, 321, 347 and Duplex 2205.
- 1 piece or 500 pieces, Angles can be cut to your exact requirements.
- Polishing is available upon request.
- Full traceability with original mill test reports available.

###### Forming

Beam and angle forming is a process used to bend an iron to a specific degree or angle.Typically beam forming differs from angle iron rolling, in that it is more concerned with forming the angle iron to a specific angle or degree, rather than a curve or radius. Beam forming processes use applied force to a piece of sheet metal to modify its geometry rather than remove any material, often using a die to create specific shapes (ie I Beams, Tees, etc). The applied force stresses the metal beyond its yield strength, causing the material to deform, but not to fail. By doing so, the sheet can be bent or stretched into a variety of complex shapes.

###### Polishing

###### Positive Material Identification (PMI)

In some cases, it may be necessary to complete additional positive material identification testing. Penn Stainless Products can complete this testing in house or we can work with an independent laboratory to complete the testing. Please contact us for specific requirements.
